Advantages
Automated Integrated System
STEM-X is an automated device that integrates and implements all the necessary processes for stem cell extraction, including enzyme treatment, mixing, centrifugation, and culturing, into a single equipment. As a result, there is no longer a need for separate equipment for stem cell extraction, and obtaining stem cells is fast and easy.
Tissue Homogenization Device
In STEM-X, a "tissue homogenization device" is installed as a standard feature, which disperses and homogenizes heterogeneous tissues, making them more uniform. This maximizes the efficiency of the overall stem cell separation process, allowing for the acquisition of a greater number of stem cells.
Efficient Stem Cell Separation
In the past, specialized facilities and trained personnel were required for stem cell acquisition. However, with STEM-X being an automated device, it can be easily used by anyone, anywhere. Additionally, it is not reliant on the operator's skill level, ensuring consistently high yields of stem cells without variations in the results.
Utilized for Various Purposes
Stem cells obtained through STEM-X can be filtered, washed, and used immediately for therapies or cultured for large-scale treatments or research purposes.

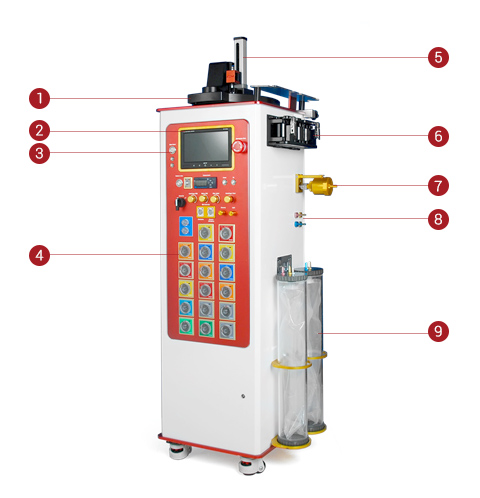

Principal Parts
1Chamber DoorDoor for Heating Chamber
2MonitorMonitor to check inside during centrifugation and stirring
3Power SwitchButton for turning the device on and off
4Control BoxTemperature, speed, lighting control and temperature display, select switch function controller
5Linear ActuatorInsertion tube up and down reciprocating device
6Pinch Valve BlockOpening and closing line controller
7Micro CutterA device that disaggregates and homogenizes adipose tissue
8Pneumatic Line Connection PartPort for connecting positive and negative pressure lines
9LIPOBIGFat collection bottle
Specification
Dimensions (W x L x H)
370 x 370 x 1500 ㎜
Rated power
AC 110V, 220V / 50-60Hz
Centrifugation
400W, 2000 RPM
Temperature setting
0 ℃ to 45 ℃ ± 0.5 ℃
Operating time
Fully automated process; 50 minutes (user changeable)
Monitoring
Real-time observation during operation
