A PRODUCT OF MEDIKAN Celltibator GT

Enzymatic reactor for maximizing stem cell separation efficiency.

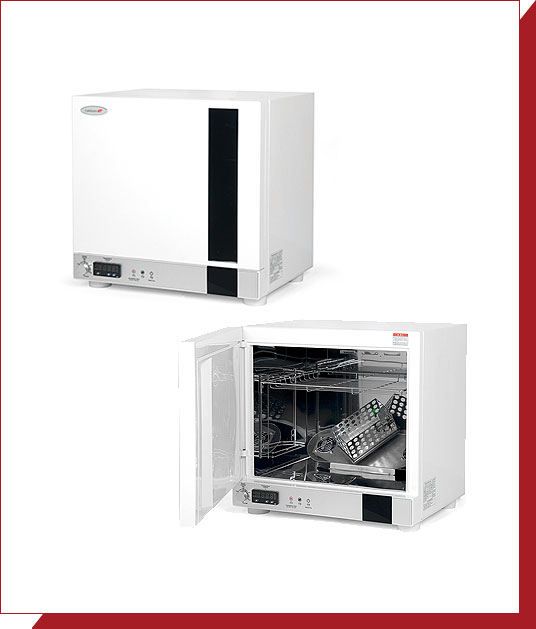

Celltibator GT

Product Description

・ The Celltibator GT facilitates the extraction of SVF (Stromal Vascular Fraction) from adipose tissue, which is a crucial step in isolating stem cells.

・ It is designed to accommodate various environmental conditions and user preferences by allowing precise adjustment and setting of variables such as mixing speed, temperature, and incubation time, enabling users to implement their desired enzymatic processing protocols accurately.

・ Additionally, it incorporates a patented rotating agitator optimized for cell separation, further enhancing the efficiency of enzymatic processing and enabling high-yield SVF extraction.

Advantages

Temperature Control
Celltibator GT minimizes temperature fluctuations to less than 0.5 degrees, reducing cellular stress and increasing enzyme reaction efficiency.
Mixing Function
During enzyme treatment, Celltibator GT continuously mixes the fat and enzyme to ensure uniform enzyme reaction in all tissues, resulting in a higher yield of SVF.
Sterilization
Celltibator GT provides a UV sterilization function before and after enzyme treatment, ensuring a safe and clean environment.
SVF Isolation
SVF can be easily extracted from processing fat treated with Celltibator GT in Fatdori.

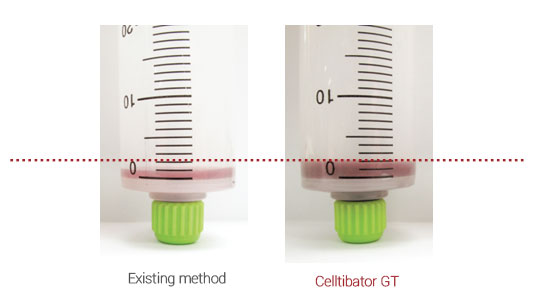

Efficiency

Cell Incubation Efficiency

Celltibator GT
Celltibator GT
Existing method
9.87 x 10⁴ cells
No. of Stem Cells Acquired
(Average per 1cc of fat)
6.42 x 10⁴ cells
89.2%
Viability
86.5%

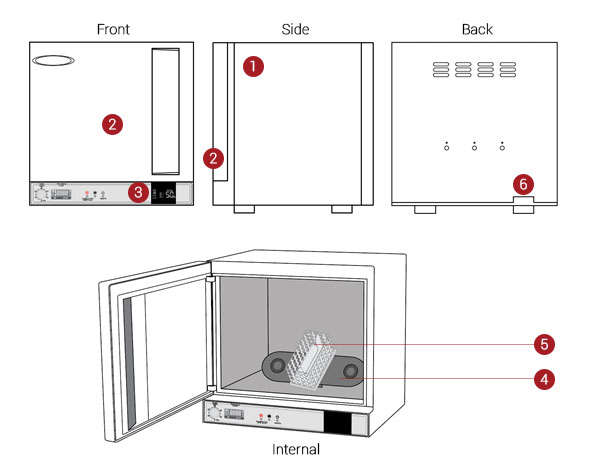

Principal Parts

Celltibator GT Principal Parts
1Body

Main body

2Door

Insulation door for heat reserve

3Control panel

Control panel to operate

4Mount

Mount to install container

5Container

Container for culturing materials

6Power connector

Power connector with built-in fuse

Specification

Product Name
Celltribator GT
Model name
MSM-101
Input voltage
AC 220V
Input frequency
60Hz
Input power
320W + 15% ↓
Motor RPM
0 RPM to 50 RPM
Temperature setting
0 ℃ to 45 ℃ ± 0.5 ℃
Operation temperature range
24 ℃ to 40 ℃
Weight
12 kg
Time setting range
50 / 80 / 120 min
Dimensions: Entire size
521 x 510 x 410 mm (Body size)
Dimensions: Tray
80 x 80 x 150 mm
Operating environment
Temperature: 10 ℃ to 40 ℃
Relative Humidity: 30% to 85%
Storage condition
Temperature: -10 ℃ to 60 ℃
Relative Humidity: 20% to 95%
