MEDIKAN PRODUCTS

Bio Revolution through innovation
A PRODUCT OF MEDIKAN TP-101 (FPU)

FPU (Fat Processing Unit) for high quality liposuction.

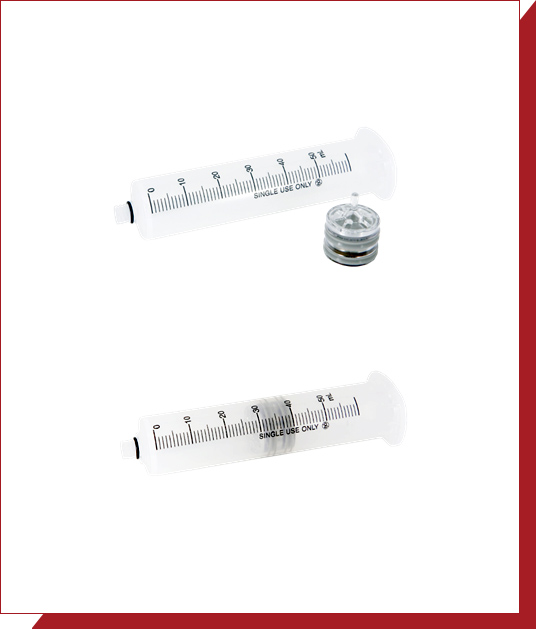

TP-101 (FPU)

Product Description

TP-101 is a syringe specifically designed for fat processing, capable of safely handling high-speed centrifugation with a capacity of 50ml.
Its internal component, the "Squeezing Piston," effectively separates and isolates any excess free oil by expelling it outside the piston.
It also applies greater pressure to the fat, resulting in a denser and purer fat called “Squeezed Fat," which has a higher cell density.

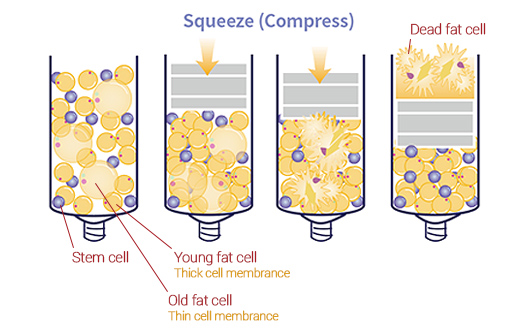

Fat Processing Mechanism

The piston efficiently compresses aspirated fat so that young fat cells could be well-separated from oil, old fat cells, etc.
Fat Processing Mechanism

Advantages

The automatic oil separation component completely separates pure fat, impurities, and free oil.
The metal ring of the piston applies increased pressure to the fat, effectively squeezing out aged cells and retaining only healthy and youthful cells.
By preserving only healthy and pure fat, the system maximizes the efficiency of stem cell isolation, ECM production, and successful fat grafting.

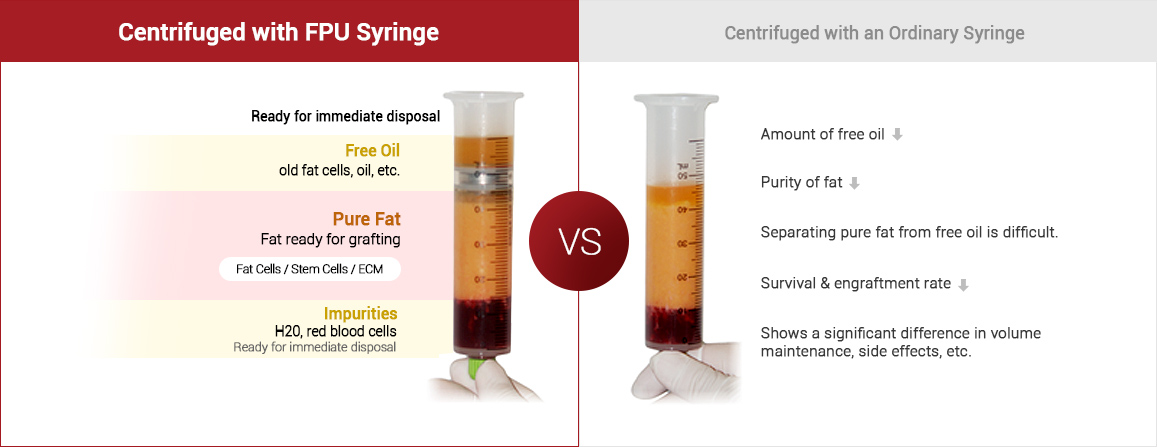

Comparison of Fat Stratification after Centrifugation

Comparison of Fat Stratification after Centrifugation

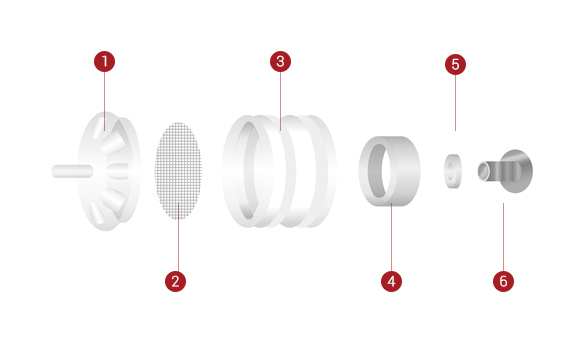

Internal Structure

TP-101 (FPU)  Explanation on Exterior
1Cap

2Filter

3Flow Gate

4Metal Ring

5Rubber Seal

6Screw

Specification

Product Name
TP-101 (FPU)
Volume
50 ml
Weight
48 g
Material
Polycarbonate
Temperature of use
0 ℃ to 90 ℃
