MEDIKAN PRODUCTS

Bio Revolution through innovation
A PRODUCT OF MEDIKAN Celltibator Breathe

“Breathing CO₂ incubator” that uses positive and negative pressure.

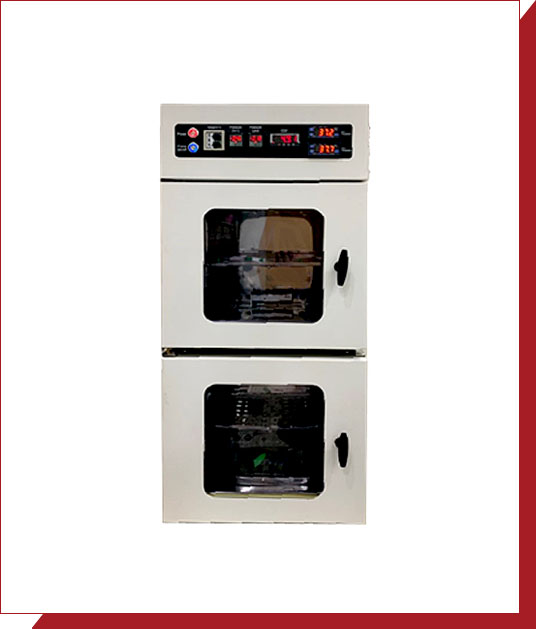

Celltibator Breathe

Product Description

・ The advanced bioreactor provides precise temperature control to ensure stable culturing of stem cells and creates an optimal customized environment based on the cell's condition. It also regulates the CO₂ concentration inside the culture vessel, enhancing its functionality.

・ In particular, it supplies positive and negative pressure to each chamber, facilitating smooth air circulation between the culture vessels and chambers. This pressure variation increases cell stimulation, leading to improved culture efficiency.

Advantages

Minimized Power Consumption
By using a dual heating device (heating wire device), power consumption is minimized.
Optimized Environment for Stem Cells
Active culture environment is created through positive and negative pressure control.
Maximized Culture Space
With the exclusive culture flask (Megakit), stacking configuration is possible, maximizing space utilization efficiency.

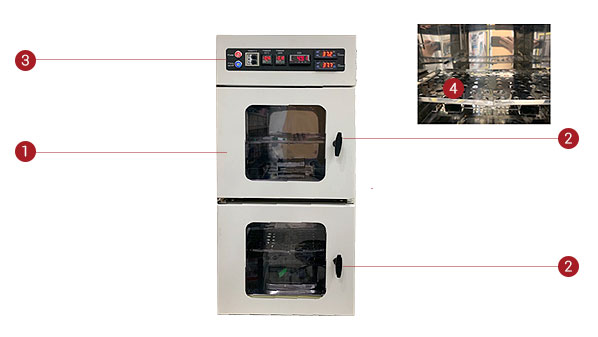

Principal Parts

Celltibator Breathe Principal Parts
1Main body

Main body of the device

2Door

Insulation door for keeping the temperature of the storage

3Operation panel

An operational section for operating the device and controlling the temperature

4Holder

A holder for installing the container

Specification

Product Name
Stem-X
Dimensions (W x L x H)
480 x 410 x 1072 ㎜
Weight
70 kg
Input voltage
AC 220V
Input frequency
60Hz
Input power
210W+15%
Rev count
0 RPM to 60 RPM
Temperature
0 ℃ to 42 ℃
Time
50, 80, 120 minutes
