A PRODUCT OF MEDIKAN Inner Chamber™

Stem cell separation and culture flask.

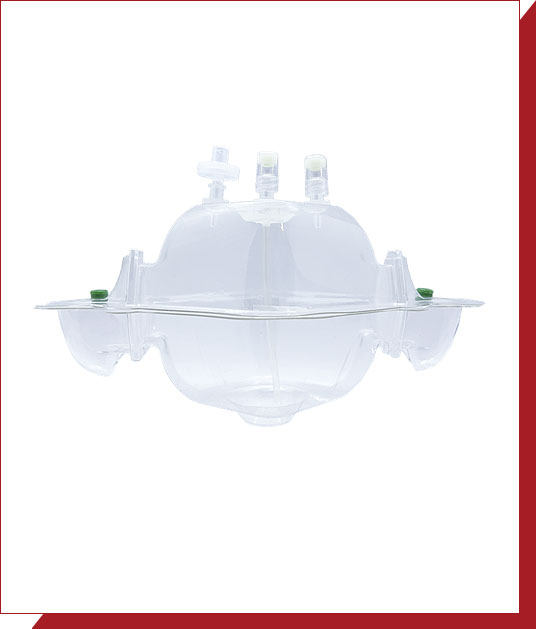

Inner Chamber™

Product Description

Role of the Inclined Part The inclined plane inside helps to naturally move the substances towards the collection area by counteracting the forces generated during centrifugation.

Role of the Filter The built-in filter helps to remove unnecessary particulate matter, allowing for the extraction of a purer SVF (stromal vascular fraction).

Easy for Beginners With the use of Inner Chamber, it is possible to obtain stem cells with high efficiency, even without specialized personnel.

Efficient Separation It is possible to obtain pure SVF even with fewer washing steps.

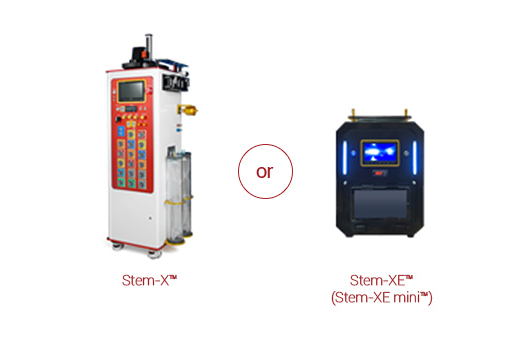

Equipment required

Equipment required

Advantages

01
The operation is simple, making it easy for anyone to use.
02
*Automatic or *semi-automatic stem cell separation is possible.
(*Depends on the device used.)
03
The semi-sealed structure prevents contamination during the operation process.
04
Hygienic usage is ensured with one Inner Chamber per patient.
05
The entire process can be operated using a syringe, allowing for use in the operating room.

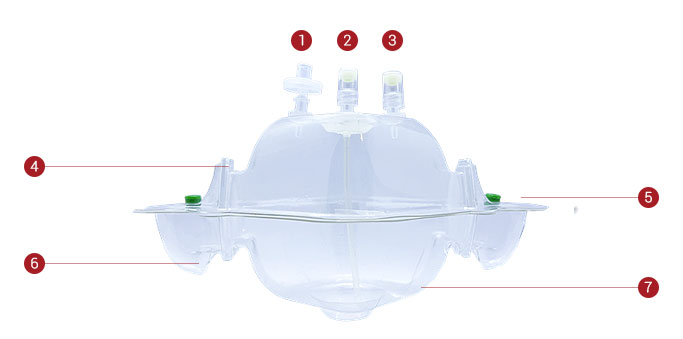

Description of Parts

Inner Chamber™  Description of Parts
1

Air Port (0.2 um)

2

Outlet Port

3

Inlet Port

4

A filter that helps to remove unnecessary particulate matter and aids in extracting high-purity stem cells. These filters come in two sizes (100, 200um).

5

The needle inlet for collecting separated stem cells using a syringe.

6

The place where stem cells are gathered after being separated.

7

The chamber where enzyme treatment, washing, and other processes take place.

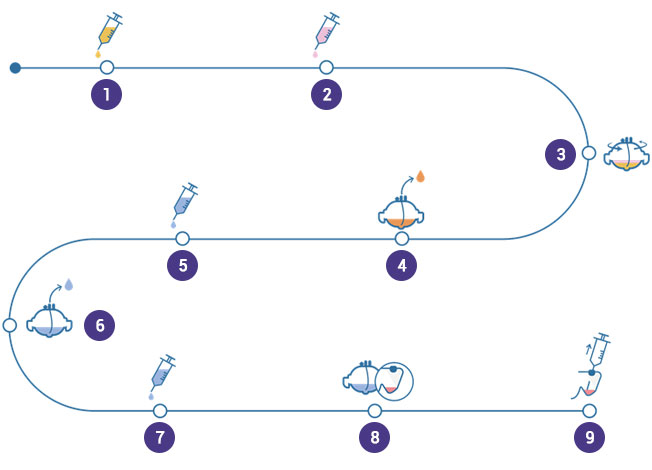

How to Isolate Stem Cells Using the Device

Inner Chamber™
1 Inject the collected fat into the Inner Chamber.
(The injection method may vary depending on the equipment.)
2Inject enzyme solution. (Same as step 1)
3After enzyme treatment (40 mins to 1 hr), perform centrifugation(3 mins).
4Remove the enzyme and fat mixture in the center of the chamber.
5Inject the washing solution. (Same as steps 1 and 2.)
6Remove the washing solution in the center of the chamber after the washing and centrifugation process.
7Repeat the washing process 2-3 times.
8The washed and separated stem cells are collected in both collection chambers (wings).
9Collect the separated stem cells using a syringe through the green needle injection port.
The SVF that passed through the 100um filter can be immediately used for IV injection.

Specification

Product Name
Inner Chamber
Size (W x L x H)
520 x 420 x 920 mm
Working volume
100 ml
Material
PET, Silicone, Rubber
Temperature of use
0 ℃ to 90 ℃
